Touch-101-A
Android panel PC with capacitive touch screen 10.1“. It has been designed to be used in a wide range of applications for supervision and technology control.
Specifications
Display:
| Size | 10.1" / 16:10 |
|---|---|
| Resolution | 1280 x 800 |
| Contrast | 1000:1 |
| Brightness | 300 cd/m2 |
| Technology | capacitive touch screen |
Performance:
| CPU | RK3588 4xA76 2,4GHz and 4xA55 Octacore 64bit |
|---|---|
| Operating memory | 8 GB |
| Flash drive | 64 GB eMMC |
| OS | Android 13 or newer |
Interface:
| Power | 12-36 VDC / max 60 W |
|---|---|
| Ethernet | 1x RJ45 (10/100/1000 base-T) + 1x RJ45 (10/100 base-T) |
| Wireless | Wifi6 (2,4/5GHz), Bluetooth 5.0 |
| COM | 2 x RS-232 |
| External interfaces | USB, HDMI |
Physical parameters:

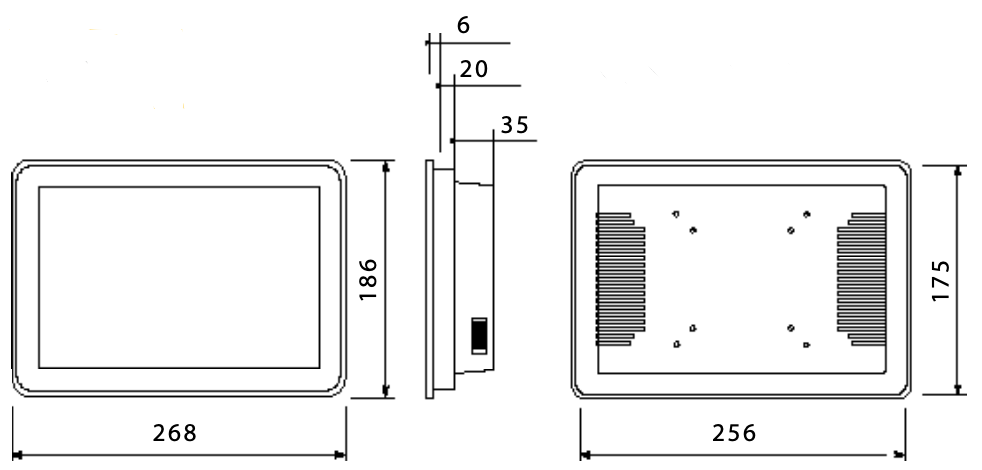

| Dimensions / weight | 268 x 186 x 61 mm / 2,2kg |
|---|---|
| Construction | Aluminium alloy, black |
| Protection | IP65 (front side) |
| Operating conditons | -10°C - +60°C / 95% non-condensing |
| Certification | CE, RoHS |
